Ideal For Wide or Large Chutes

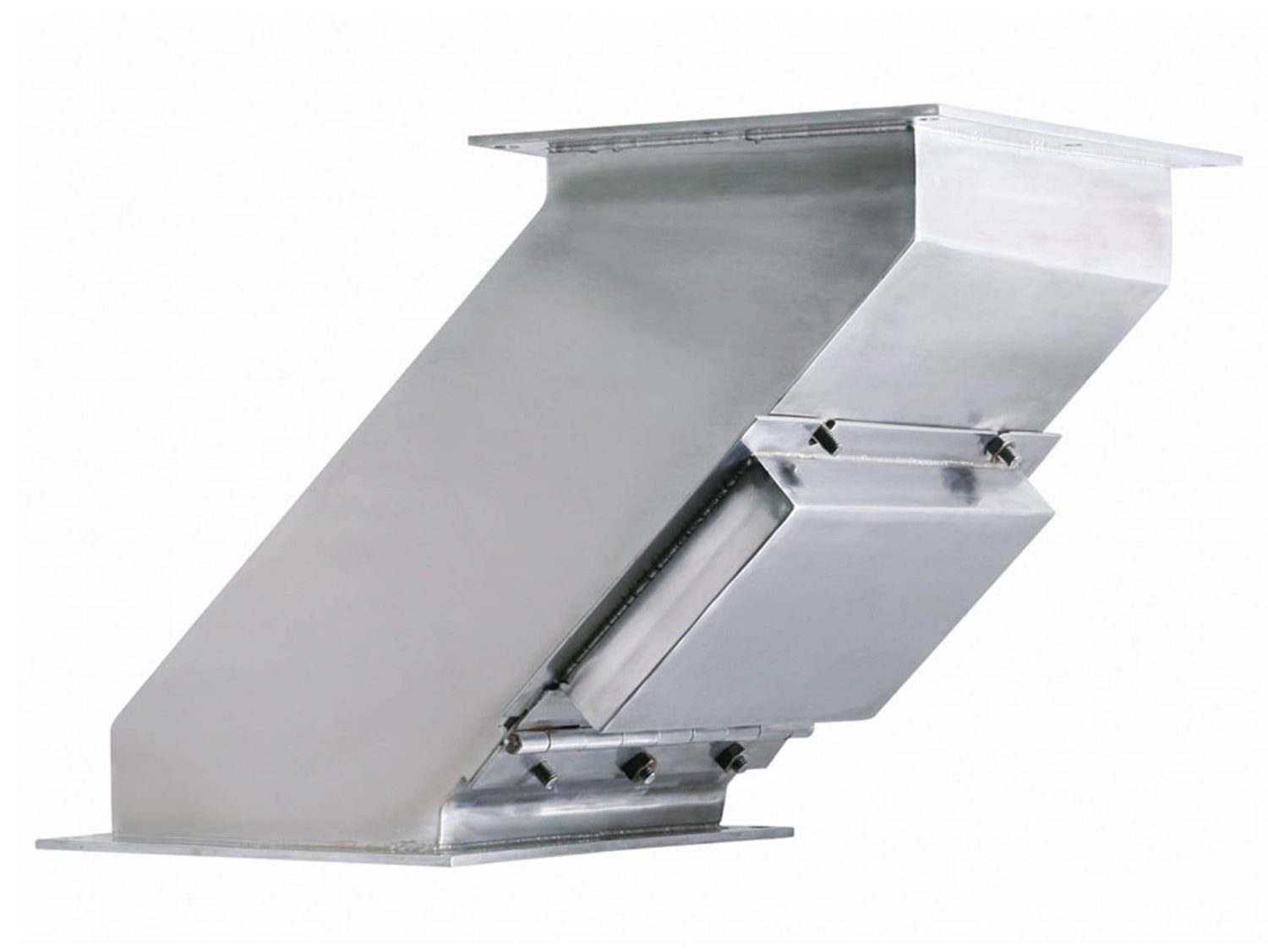

For when it is critical that product can not be impeded by a magnetic system, our Deep Field Housed Chute Magnets are the ideal solution.

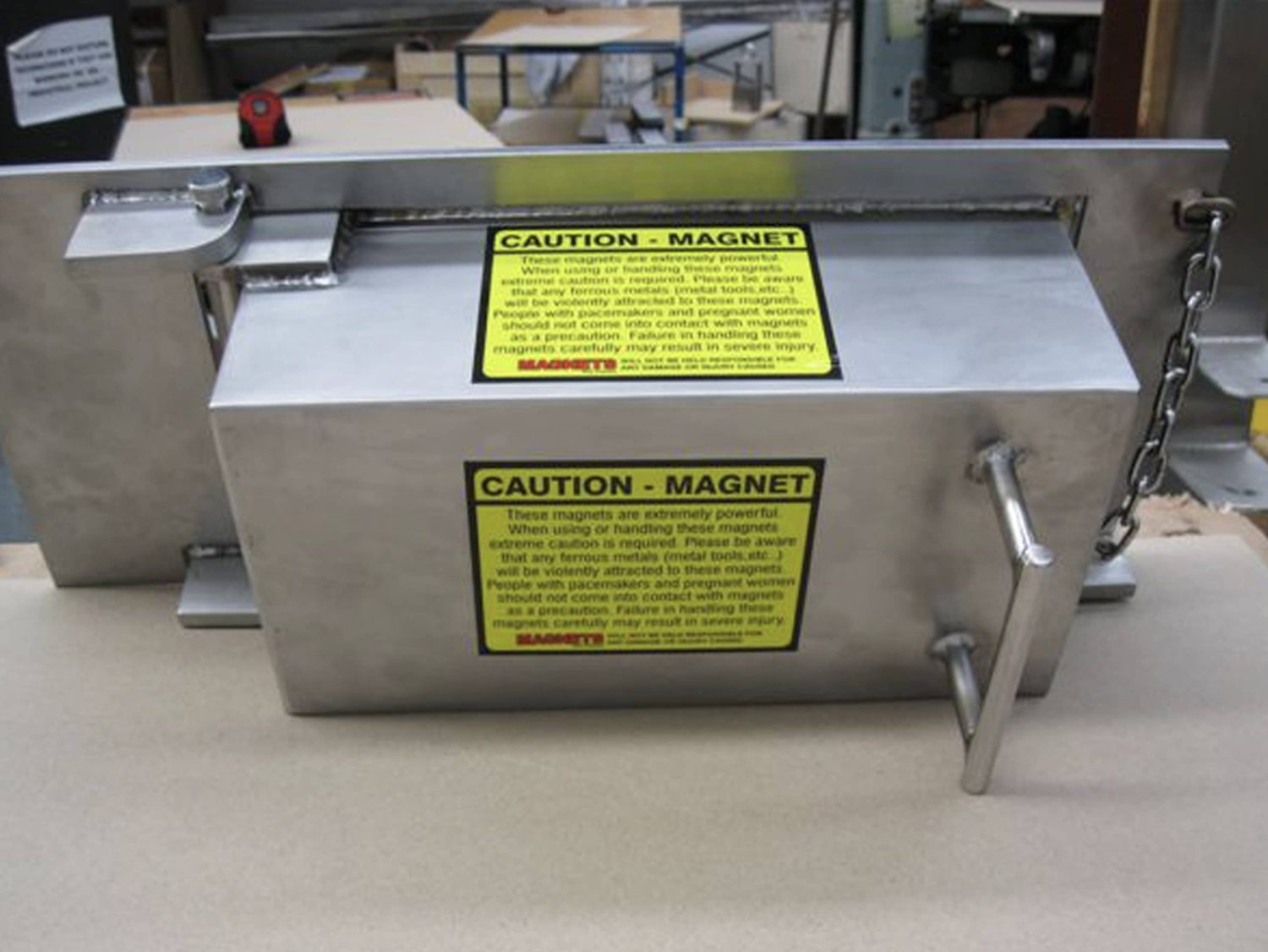

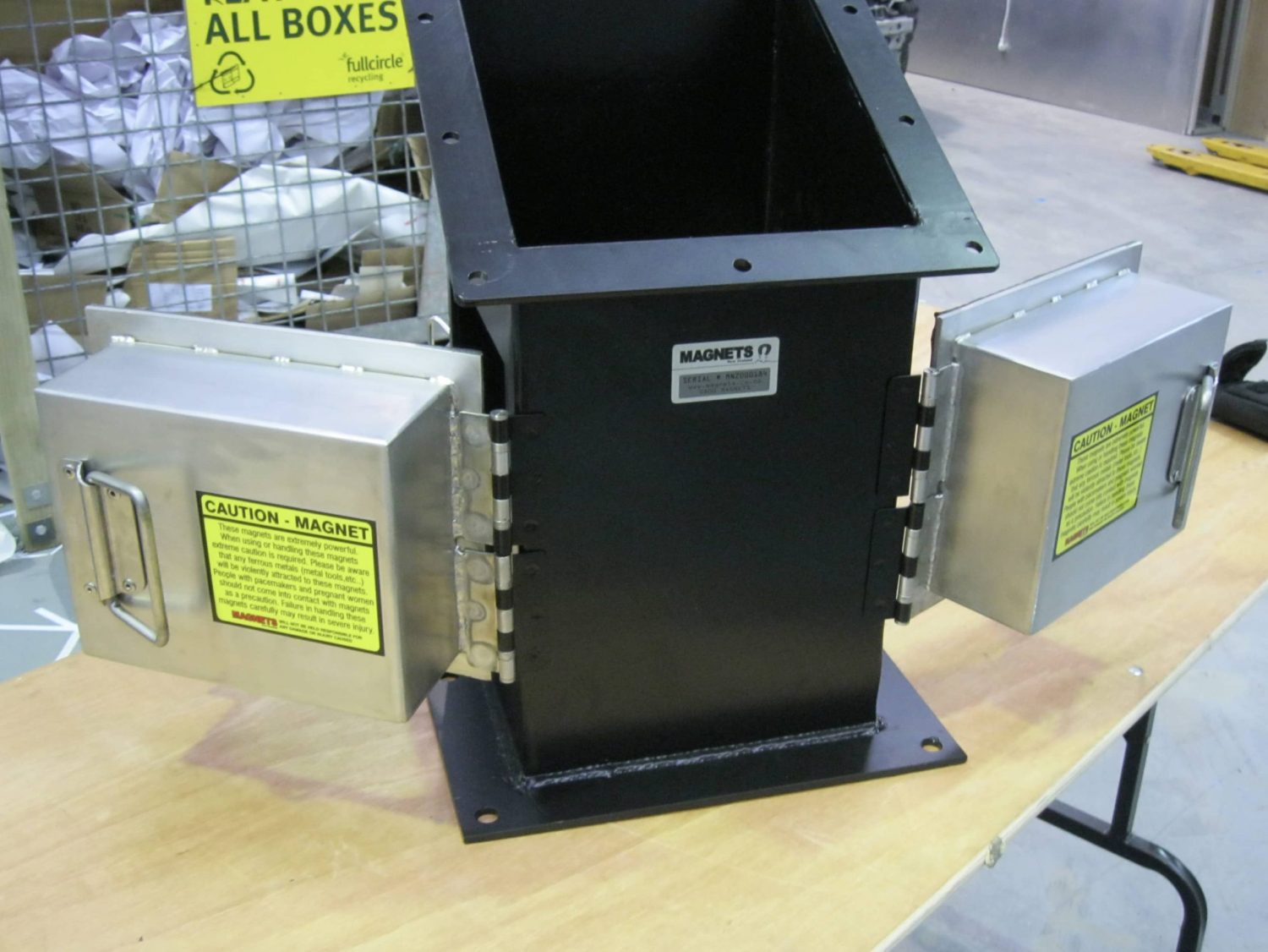

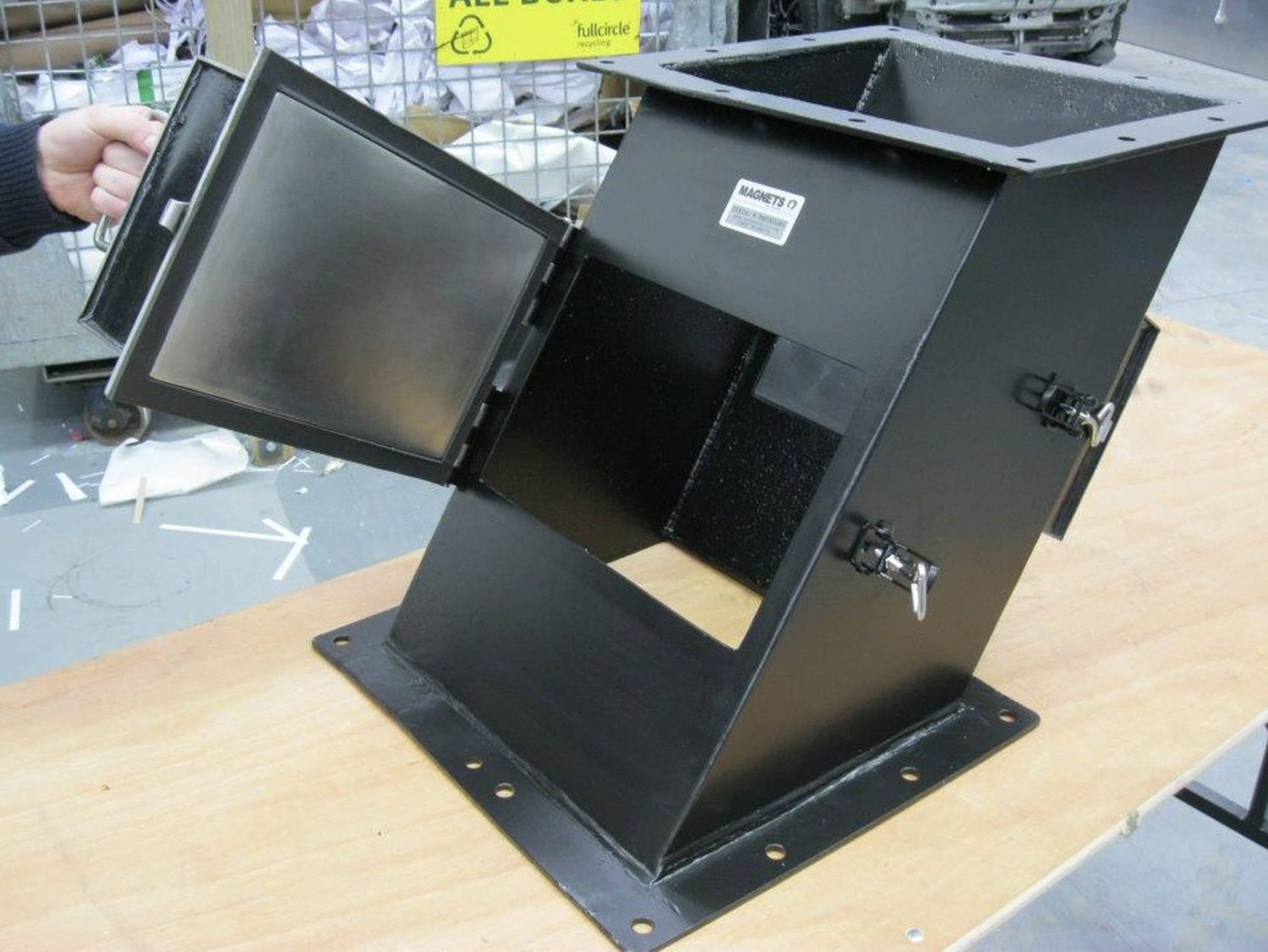

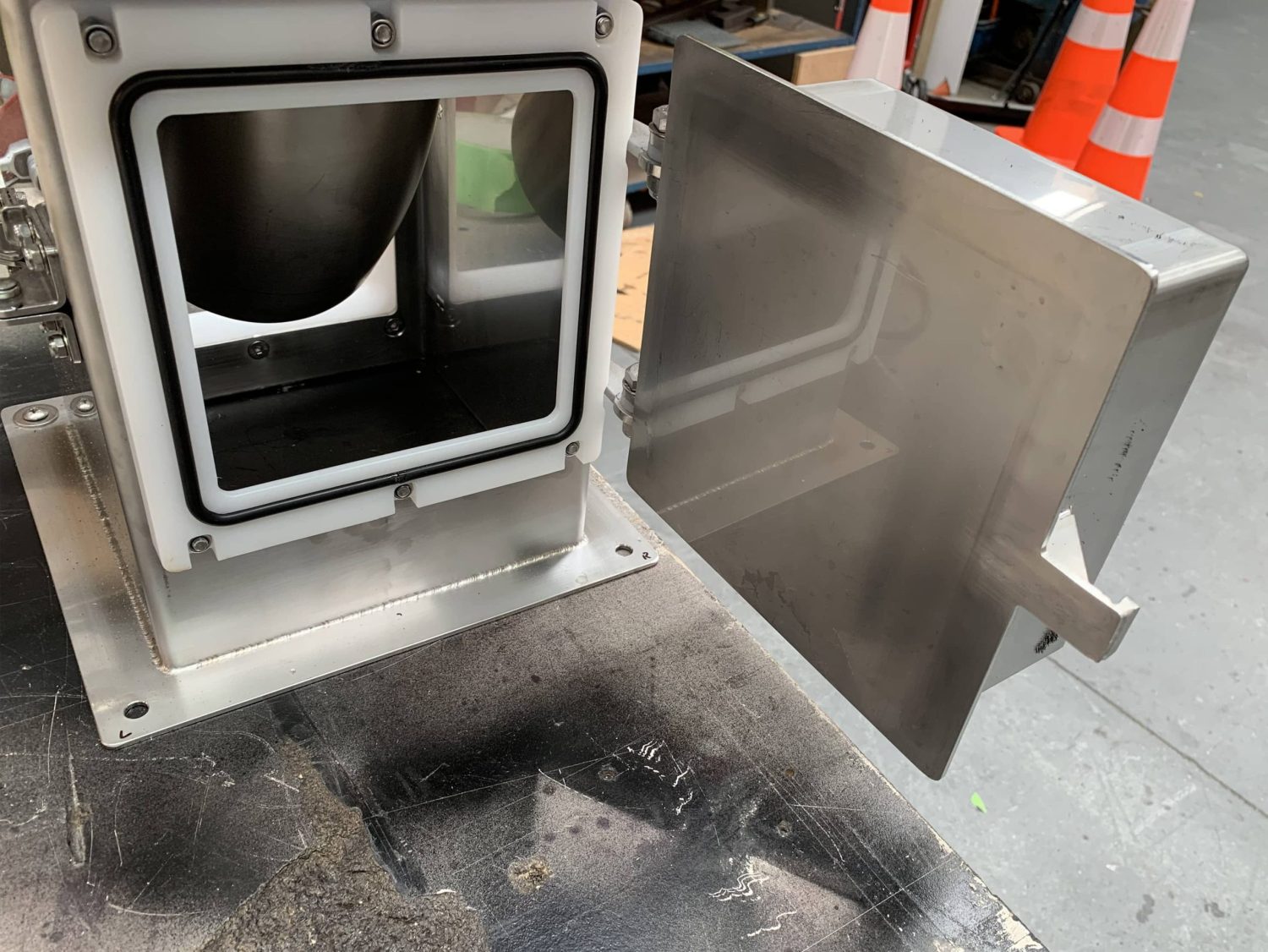

Two high-powered Rare-Earth plate magnets are positioned opposite each other, so the magnetic field reaches into the product from both sides, capturing and holding ferrous contamination. With both plates being hinged, they can be opened easily allowing for easy cleaning.

Being made of high powered Neodymium magnets, these plates are strong enough to reach deep into product flows to extract ferrous contaminant. Combined with their catchment strips they are easily able to retain contaminant until being cleaned/inspected by operators.

For optimum performance, adding a wedge shaped deflection bar at the top of the housing will help deflect product towards the plate magnet and away from the weaker areas in the magnetic field.

A Solution Where Size Matters

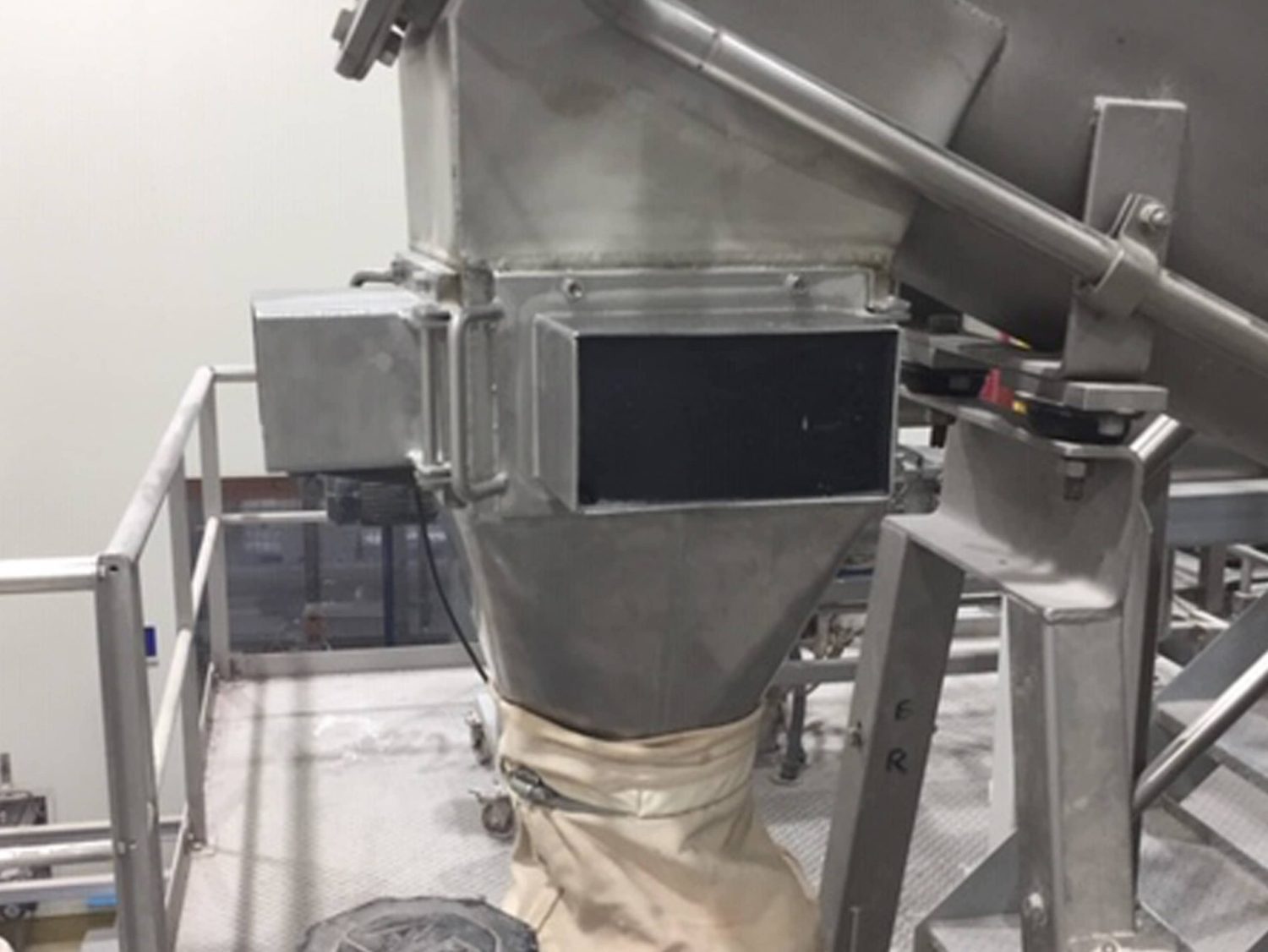

These systems are ideal where space is an issue as these can be easily incorporated into an existing line and do not require much clearance.
In areas where there is a significant space issue a single unit can be used on the underside of the chute where product flows over it.

The hump system is used to remove small to large ferrous contamination from enclosed flow lines for product purity before the product reaches storage bins or processing equipment helping to eliminate damage to expensive machinery.

By using two magnetic doors a incredibly powerful magnetic field can be created that can extract product from fast flowing product flows.
